Model No.: CW-JL-Z4
Jenama: Chong Wei
Human–computer Interaction: RGB light strip
Rated Voltage: Single-phase three-wire 220VAC
Protection Class: IP65
Number Of Jacks: New national standard 7 holes
Max. Rated Current: 8A
The Length Of The Gun Line: 3M (optional non-standard length)
Rated Power: 2.2KW(220VAC)
Working Frequency: 45~65Hz
| Unit Jualan | : | Pack/Packs |
| Jenis Pakej | : | Pembungkusan eksport standard |
The file is encrypted. Please fill in the following information to continue accessing it
|
Product Name |

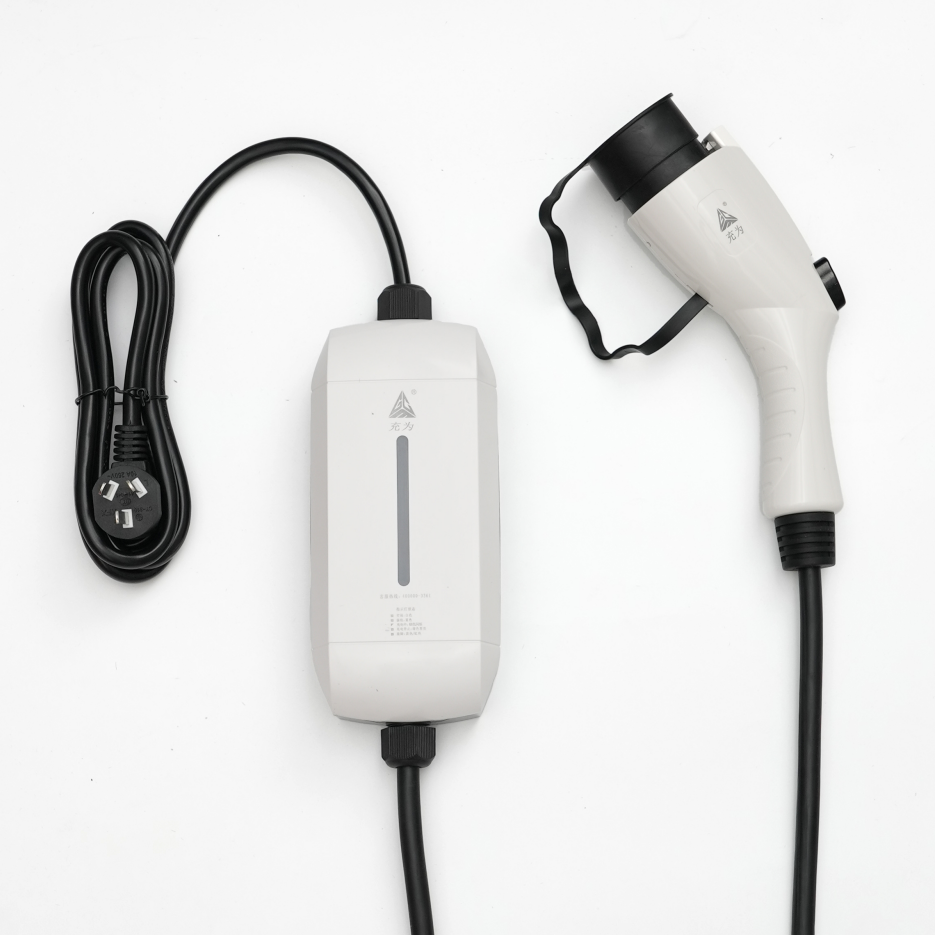

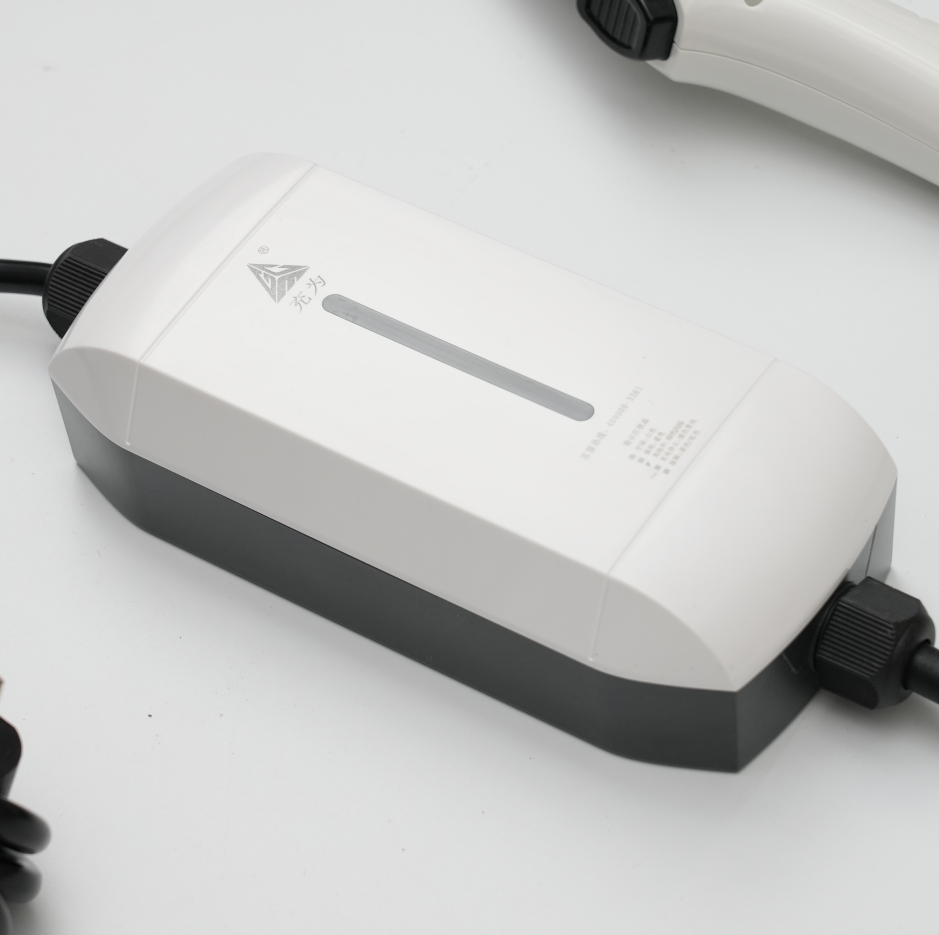

Charging Post Z4 2.2 kw light guide column section |
|
Model |
CW-JL-Z4 |
|
Specification |
CW-JL-Z4/238.8*91*56 PC |
|
Charging mode |
Plug and play |
|
The length of the gun line |
3M (optional non-standard length) |
|
human–computer interaction |
RGB light strip |
|
Rated Voltage |
Single-phase three-wire 220VAC |
|
Rated power |
2.2KW(220VAC) |
|
Working Frequency |
45~65Hz |
|
Max. Rated Current |
8A |
|
Operating Temp |
-30℃～＋50℃ |
|
Protection Class |
IP65 |
|
Number Of Jacks |
New national standard 7 holes |
|
General Standard |
GB/T 18487.1-2015，GB/T34657.1-2017; |
|
Protection function |
Under-voltage, over-voltage, over-current, over-heat, short circuit, leakage, full automatic stop, ungrounded protection |
Gambaran Keseluruhan: Pistol pengecasan AC Standard National Standard National, mod pengecasan untuk plug dan bermain tumpukan pengecasan, pistol pengecasan kereta tenaga baru berdasarkan konsep reka bentuk "mudah dan praktikal", pengacuan bersepadu adalah elegan dan mudah, dan reka bentuk pemegang mematuhi prinsip ergonomik, memberikan rasa yang selesa.
Waranti: Penggantian satu tahun, jaminan tiga tahun, penyelenggaraan seumur hidup.
Langkah berjaga -jaga: Pastikan palam palam palam ke dalam kapasiti bekalan kuasa adalah lebih besar daripada atau sama dengan 16A, kenalan bekalan kuasa dalam hubungan yang baik.
