Model No.: CW-JL-Q1
Withstand Voltage: 2500VAC
Contact Resistance: 0.5mΩMax
Insulation Resistance: 1000MΩ(DC500V)Min
Termination Type: Riveting type
Plating: Silver plated
Working Frequency: Low Frequency
Main Material: PC anti-UV
Insertion Force: 100N Max
Durability: 10000cycles Min
Protection Class: IP55/IP65
| Unit Jualan | : | Others |
| Jenis Pakej | : | Pembungkusan eksport standard |
The file is encrypted. Please fill in the following information to continue accessing it
|

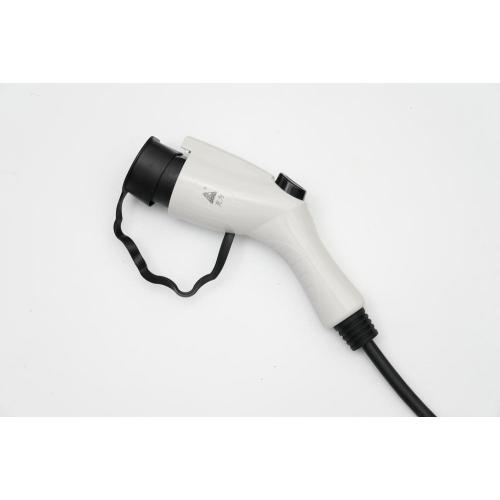

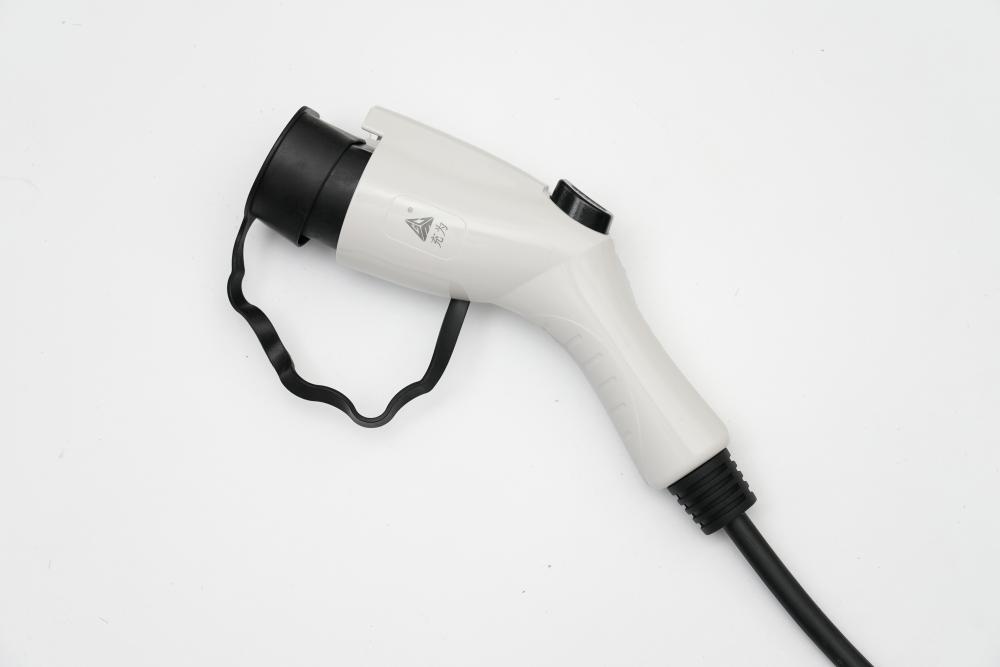

Product Name |
ChargerQ1 380V 32A |
|
Model |
CW-JL-Q1 |
|
Specification |
CW-JL-Q1/229.7*114.7*60.3 PC W3651G |
|
Rated Voltage |
380V |
|
Max. Rated Current |
32A |
|
Withstand Voltage |
2500VAC |
|
Contact Resistance |
0.5mΩMax |
|
Insulation Resistance |
1000MΩ(DC500V)Min |
|
Termination Type |
Riveting type |
|
Plating |
Silver plated |
|
Working Frequency |
Low Frequency |
|
Main Material |
PC anti-UV |
|
Insertion Force |
100N Max |
|
Durability |
10000cycles Min |
|
Environmental Characteristics |
Salt spray 24H |
|
Operating Temp.：-30℃—+50C |
|
|
Number Of Jacks |
New national standard 7 holes |
|
Protection Class |
IP55 |
|
Warranty |
One-year replacement, two-year warranty, lifetime maintenance |
|
General Standard |
GB/T20234.1:2015+GB/T20234.2:2015 |
|
Precautions |
* Make sure the grounding is reliable * Disassmble charging device is strictly forbidden * Stop charging when there is lightening * Strictly forbidden to contact plugs with wet hands |
Pistol pengecasan kenderaan tenaga baru adalah peranti yang digunakan untuk mengecas kenderaan elektrik. Ia boleh menukar kuasa AC ke dalam kuasa DC dan mengenakan kenderaan elektrik dengan menyambung ke pistol pengecasan.
